NITTOSEIKO Pick and Drive System, PD400UR-M/V

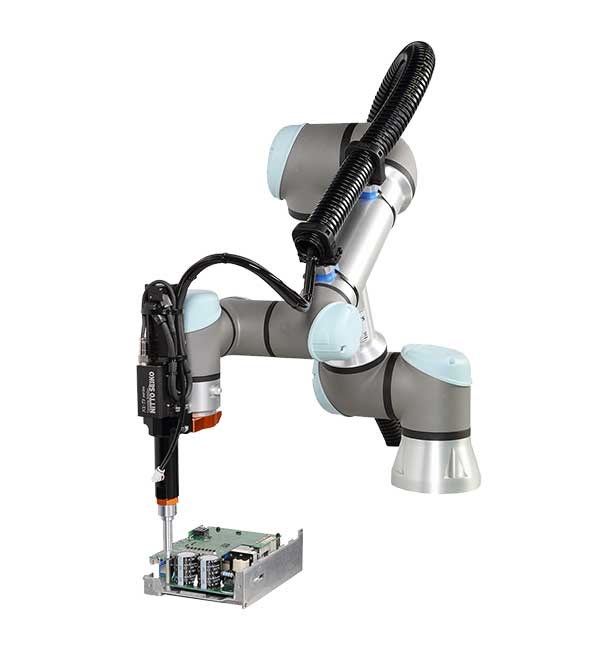

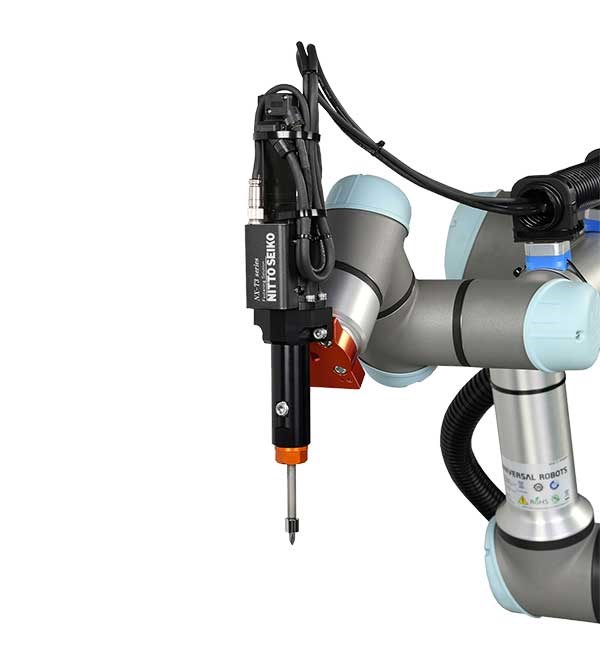

Screw driving system for Universal Robots. The system is equipped with an SD600T Series NX Driver which is ideal for high-precision screw tightening. This system makes it possible to tighten various screws at a variety of different angles.

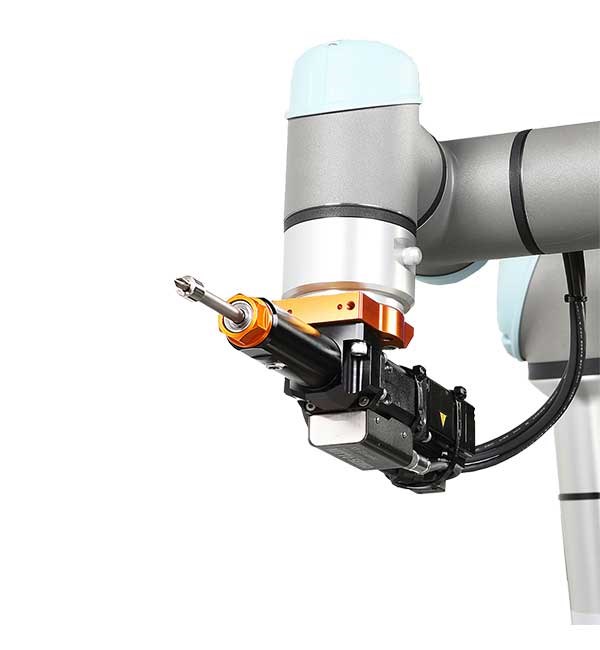

- Compact and lightweight design enables the screwdriving at narrow and tight spaces for various application.
- URCap enables easy setting for screwdriving parameters on teach pendant.
- In Quick Mode just need to enter the target torque, and all the other screwdriving parameters are to be calculated automatically.
- Sixteen different programs are available and enable applying different settings individually for each screwdriving location.
- Applicable torque : 0.5Nm - 6Nm (select from three options of NX Driver)

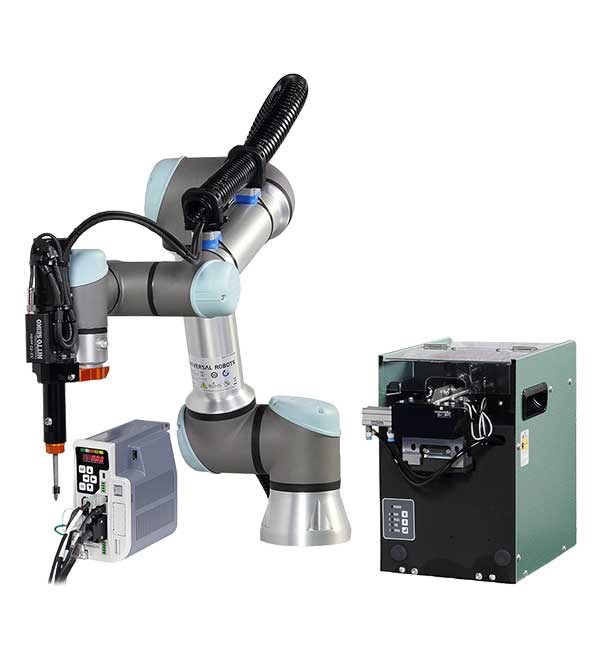

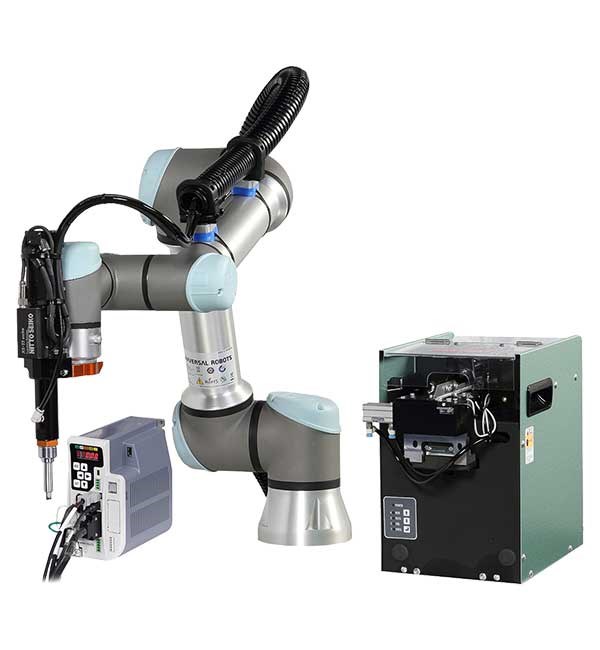

The screwdriving tool picks up a screw from screw feeder with magnet or vacuum pick up feature, and drives it at a pre-taught screwdriving location. The program and screwdriving parameters can be set on teach pendant comfortably with URCap.
urcap includedsd600tcontroller Version 1.0.0
Software version requiredPolyscope Version 5.4+
Certifications and standardsNone
DimensionsScrew driving tool : 65mm x 55mm x 400mm
SD600T Controller : 180 mm x 92 mm x 170 mm
What's in the box?・Screwdriver with NX T3 series Driver
・(5) Screwdriver Bits
・Vacuum generator with air filter (*optional)
・(2) Screw Guides (*optional)
License typeOne-time with annual support
