Welding Package - Trace Pen
This system makes programming of robot applications easier. Due to the simple operation, which is intuitive, component programming can be done with very little training. In addition, the programming time for an assembly is greatly reduced, so that small batch sizes can also be automated economically now. The system even allows the components to be programmed outside of the robot system - this increases system availability. The data is sent to the robot in a standardized way and is directly accepted by the robot.

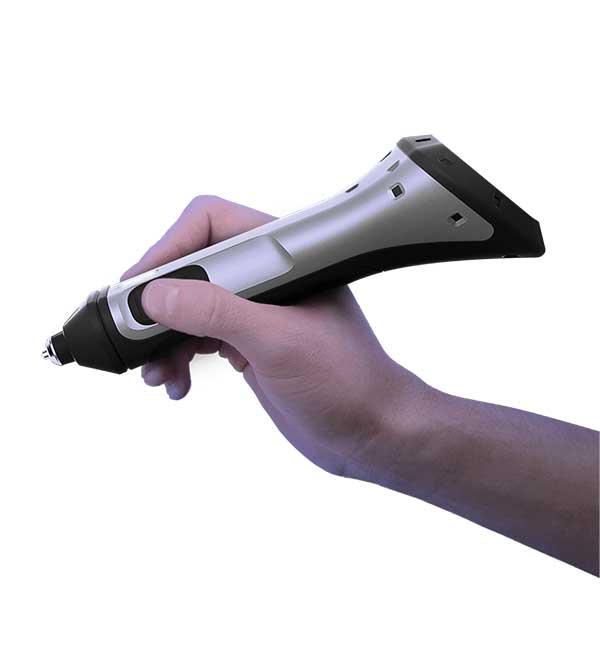

Being designed for non-programmers, the TracePen enables everyone to teach and re-teach a cobot for:
- Robot gluing
- Robot grinding
- Robot spray-painting
- Robot inspection applications
- Robot pick and place applications
Independent Robot programming
Up until now, if you wanted to make a change to your robotic automated processes you needed a programming expert to support this task. Wandelbots now aims to make process/application experts programming experts. We enable everyone to (re-)teach a robot by his/her own.
Save Time and Costs for Programming
Long and costly downtimes, as well as expensive and rare programming experts are some of the reasons robots are not used by small and medium sized companies. The Wandelbots Teaching solution makes programming now up to 70x faster and up to 90% cheaper by enabling everyone to teach robots themselves.
Reuse 100% of Your Skills
Instead of teaching your robots from scratch, you can simply reuse existing robot skills with Wandelbots. Generated codes can also be easily transferred to another robot of the same brand. Currently, Wandelbots is developing a feature which will allow the transfer of taught skills among different types of robots within minutes. Stay tuned for this feature.

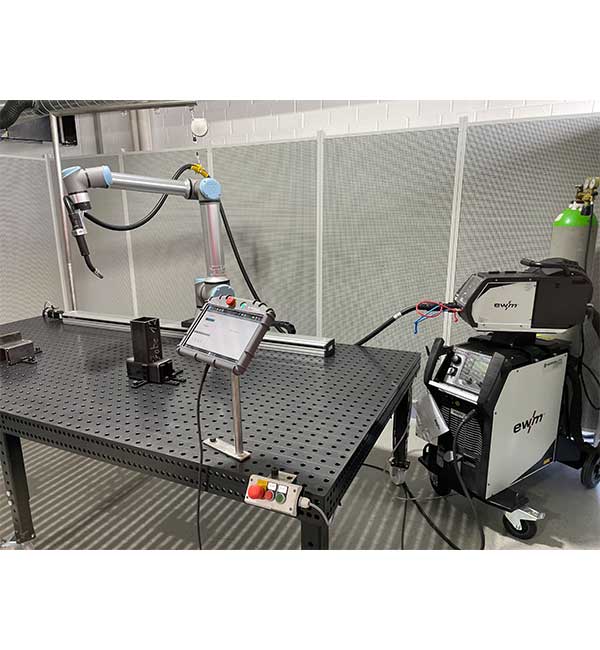

The freely configurable welding technology is from EWM or optionally from Fronius.
The welding processes WIG with and without wire feed, MIG / MAG and plasma can be selected in different performance classes.
The scope of delivery also includes:
- Complete interface of all components to your UR robot
- Welding torch with bracket suitable for UR
- Free Drive module
- Robust start / stop module for welding workplaces
- Required cable setsTrace Pen license with support agreement
Comprehensive and illustrated 'out of the box' instructions help you to put the system into operation independently.
On request, this can also be done with the support of our application technology department on site or with digital media online
System versions with an overall CE declaration are also optionally available
includes urcap pluginYes. URCap Name: Wandelbots UR
Software version requiredFor CB-Series: 3.5.X.X or higher
For e-Series: 5.1.X.X or higher
DependenciesFor CB-Series: 3.5.X.X or higher
For e-Series: 5.1.X.X or higher
certifications and standardsCE

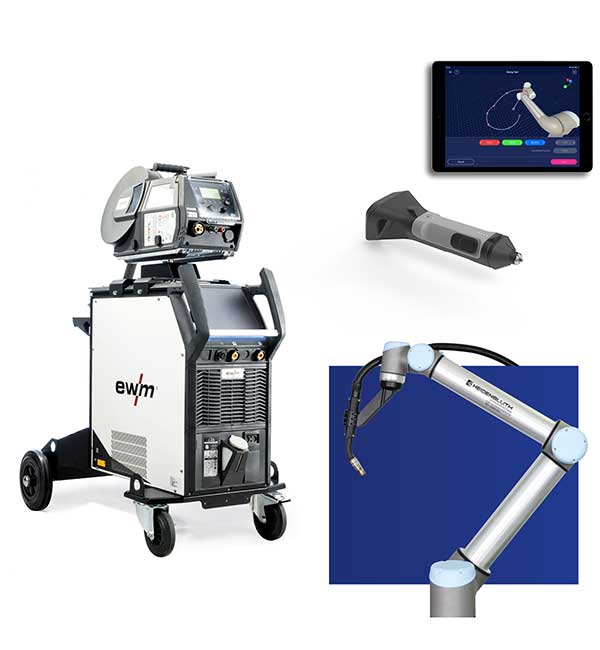

DimensionsThe Wandelbots Teaching solution is delivered in the Wandelbox. This is a suitcase that contains the IPad (with Wandelbots App already installed), the TracePen, tripods with tracking cubes to track movements, a calibration adapter, extra TracePen tips and an industrial PC for connecting Wandelbots to your robot controller. The whole package including the welding machine and equipment is coming on a euro pallet 1200 x 800 mm.´
what's in the box1. Wandelbox (TracePen, Tablet, TracePen Tip-Set, Traking System, Accessoires)
2. Wandelbox PlusOne (Wandelbots IPC, Wandelbots Calibration Adapter, Ballheads, Accessoires)
3. Tripod Package (Tripods)
4. Welding machine and equipment
LicenseOne time purchase with yearly license or teaching day (24 hour licenses)
