Adaptive Gripper DAG-M
DAHL ADAPTIVE GRIPPER DAG-M
On sale now for universal robots e-Series and cb3 models
Easy. Precise. Gripping. The sensitive and accurate gap closure in your automation.

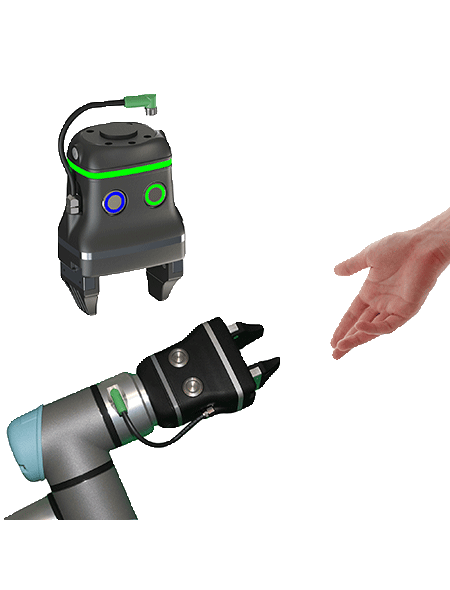

DAG is the compact, simply customisable gripper for the automation of manual workplaces. Introducing the DAG-M for use with all Universal Robots types, Dahl Automation presents a brand new flexible handling concept for accurate and specially sensitive tasks.
Simply customized! The gripper for every job.
The Dahl Adaptive Gripper DAG-M bases upon our 2017 gripper study DAG-S and is the flexible standard component for the complete automating of your company. The servo-electrical series product convinces due to its programmable parameters (stroke, speed, position & power), a comfortable interface to communicate with your robot and fully customisable gripper fingers. Apart from the standard fingers which are flexibly replaceable, thanks to additive manufacturing, customised fingers for exact external or internal and even positive gripping can be installed.
Simply UR+! For your joy.
Besides its exact adaptability for the assignments and maximum precision, the DAG-M satisfies the user by its simple installation and operation. Designed as a UR+ product it is particularly suitable for the easy use in combination with Universal Robots as it is controlled directly on the UR user interface.
Simply grips it! Your product. With your robot. In your application.
The compact DAG-M represents a solution for lots of tasks. Particularly for yours. Regarding the automation in fields where a special degree of sensitive handling is required - e. g. regarding operations in metal processing or electrical industry - you make the right choice by using the fully customisable DAG-M. The user is delighted by the simple installation and operation, exact adaptability and precision as well as stable performance of the gripper.
Simply precise! The tool for your fine tuning.
Create the automating of ergonomically unhealthy work where human hands seemed to be the only way regarding fine motor skills for special sensitive handling requirements.
Experience the Dahl Adaptive Gripper now!
Visit our German or English product landing page adaptive-gripper.de for further information, download a technical datasheet and get your quote!
Suited for the following applications
Features and benefits
• Collaborative design
• Simple installation & programming
• Variable parameter setting, fully adapted to your task
• Quick operational readiness
• UR integrated, user-friendly menu navigation & intuitive operation
• 2 additional push buttons for manual access to basic features Freedrive & Open/Close
• 360° colour luminous ring for visual status signals
• Stable performance / failsafe operation
UR3, UR5, UR10
UR3e, UR5e, UR10e
Software version required
3.5.x or higher (control CB 3.1 or higher)
Height 122 mm
Width 98 mm
Depth 65 mm
Weight 800 g
What’s in the box?
- Robot gripper in collaborative design
- Set of gripper fingers plastics (external gripping)
- Adapter plate for direct integration with UR e-Series
- Set of fixing screws
- UR+ integration software & operation manual
- Optional: adapter for integration with UR CB3 models
Prior Notice: On Sale from 1st November 2018
UR+, Gripper DAG-M for collaborative robots, Dahl Automation GmbH
