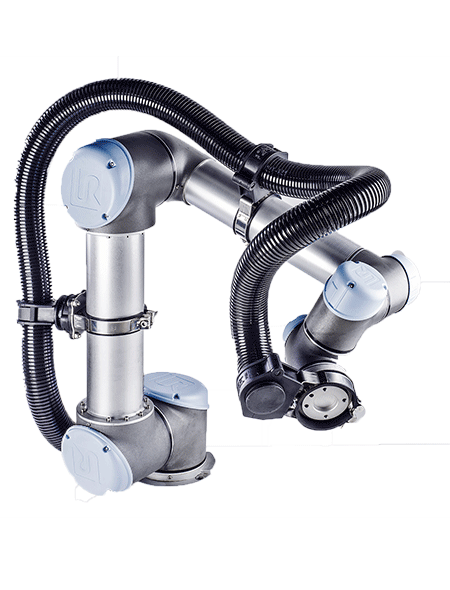

MESUB REIKU Cable Protection - Heavy Duty
- MESUB fits to REIKU conduit and accessories trade size NW17 to NW90.
- 6 item sizes to cover robot arms Ø 54 to 108mm (UR3 to UR10)
- Strong metal collar with integrated console
- Hinge pin screw connection for high holding forces and easy adjustment
- Slip-resistant rubber profile to avoid sliding on the cobot’s arm.
- Easy assembly
- Compatible with REIKU rotary flanges
How does it work?
- First place the clamp on the rotary console
- Then attach the metal collar on the arm and turn the screw
- After you have placed the cables inside the conduit, place the conduit assembly inside the clamps
- You may place the metal collar in its final position and turn the screw tightly
- That’s it!
UR3, UR5, UR10
UR3e, UR5e, UR10e
Certifications and standards:
Depending on size
Conduit and clamps.
size and quantity depending on customer application:
Cobots often don’t present attaching/mounting capabilities for accessories. MESUB is designed for specific nominal diameter range of round robotic arms. Especially suitable for heavy duty use on cobots with high dynamic movements and high loads
