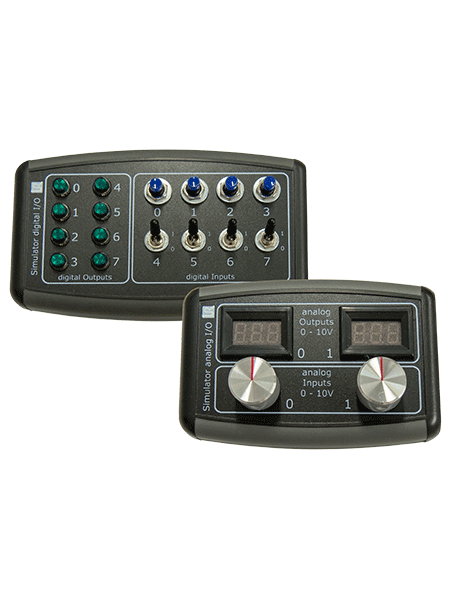

The I/O simulator is a must when you need to simulate I/Os during basic training or sales demonstrations. The simulator is designed for the UR3, the UR5 and the UR10 CB- and e-Series robots and is virtually plug and play.
The simulator comes with 2m flat ribbon cable and an UR terminal kit. The flat ribbon cable saves space and allows the cabinet door to be closed with the cable in between. If so required, the simulator can be delivered with individual lettering and company logo.
Suited for the following applications
Features and benefits
Digital I/O simulator:
- Eight green LED for outputs 0 to 7
- Four push button switches for inputs 0 to 3
- Four toggle switches for inputs 4 to 7
Analogue I/O simulator:
- Two voltmeter 0-10V for outputs
- Two potentiometer to create 0-10 inputs
How does it work?
Simply plug in the simulator and you are ready to go.
Includes a URCap plugin:
UR3, UR5, UR10
UR3e, UR5e, UR10e
Certifications and standards:
UR+, I/O simulator for collaborative robots, FJ Mayer
