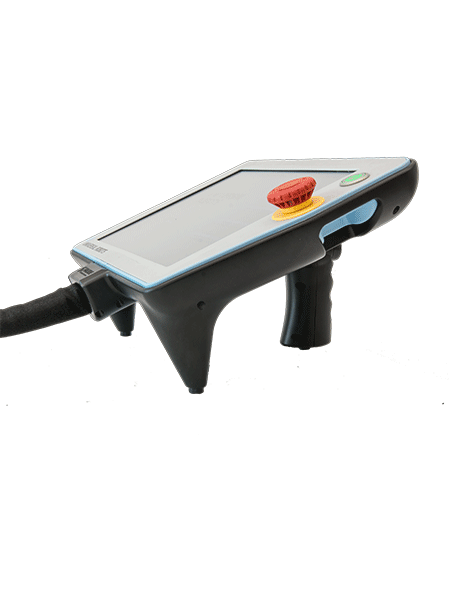

FAUDE SaCa – Safety Case
- Increases the fulfillment of the safety requirements for industrial robots (DIN EN ISO 10218-1)
- 3-step enabling switch
- Freedrive push button
- Easy, safe and reliable teaching with one-hand operation
- Safe position of the panel
- Suitable for right and left-handers
- No change in the components of the UR robot
- Applicable to all UR robot types
How does it work?Single-handed ergonomic operation permits additional actuation of the button for freedrive mode. This means one hand is free for manual guidance of the robot. It is suitable for both left and right handed operation. With the 3-point set down the operating panel is available at any time for safe and comfortable programming.
Ready assembled and prepared for connecting the SaCa in the robot controller switch cabinet.
Like the Panel
Minimum Polyscope Software Version 3.2.18654
What's in the box
1x SaCa Safety-Case
-3-level enabling switch
-freedrive push button
-5m cable and protective hose with special strain relief
1x clamping strip
-DIN rail 330mm
-2 end blocks
-1 labeling field
-Single at the edge of the terminals with the I / O level of the controller
No royalties -> one-off purchase price
The screws must be tightened with a torque of 0.6 Nm. If this is disregarded, the manufacturer's warranty expires.
The requirements of an enabled device according to DIN EN ISO 10218-1 are fulfilled with the retrofit of the UR teach panels with the SaCa safety case, including the 3-level enabling switch.
