Tilldelning

Beskrivning

The Assignment command enables you to assign values to created variables.

To access Assignment command

  1. Go to the main program screen. Se Command Nodes.

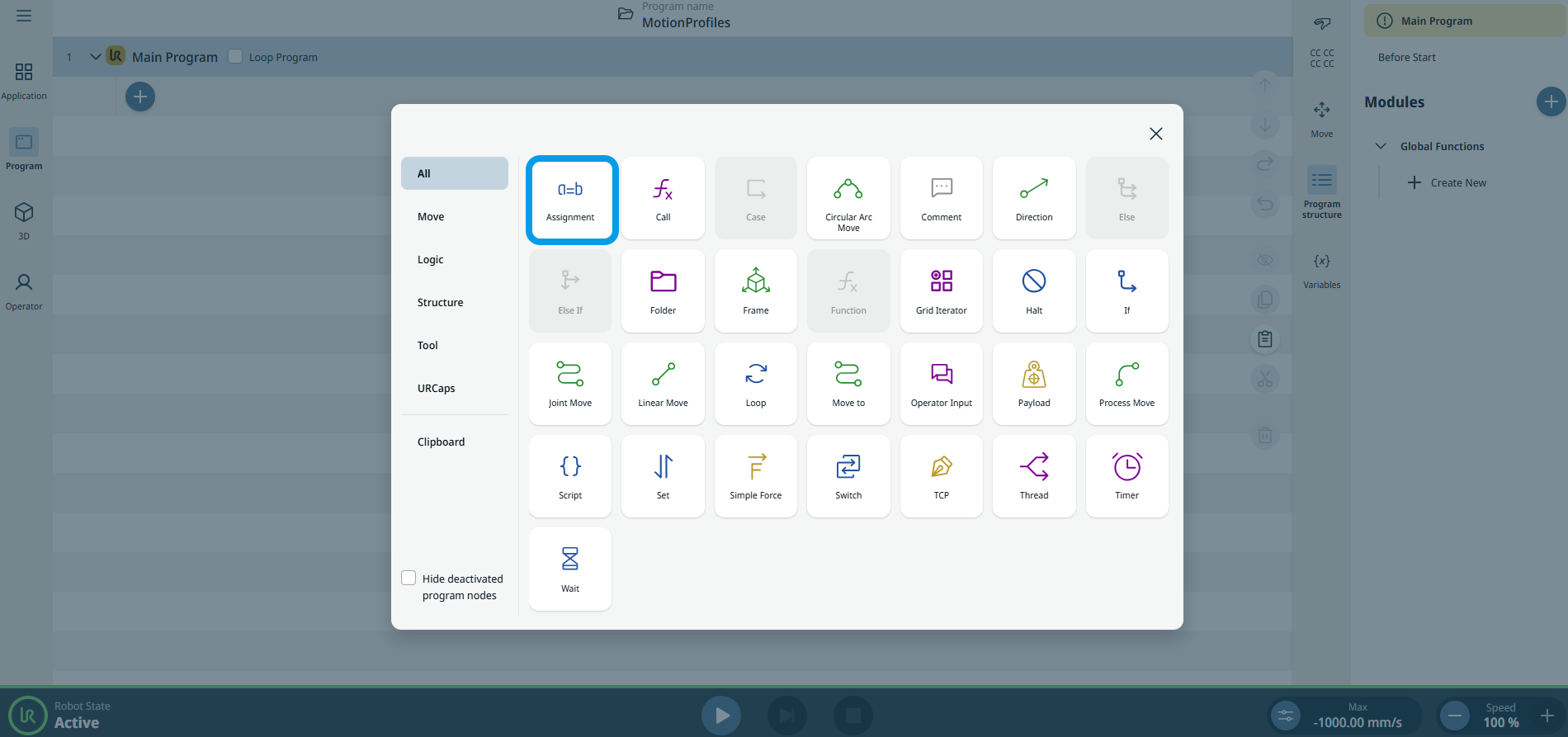

  2. Tap the Assignment icon in the Commands toolbox.

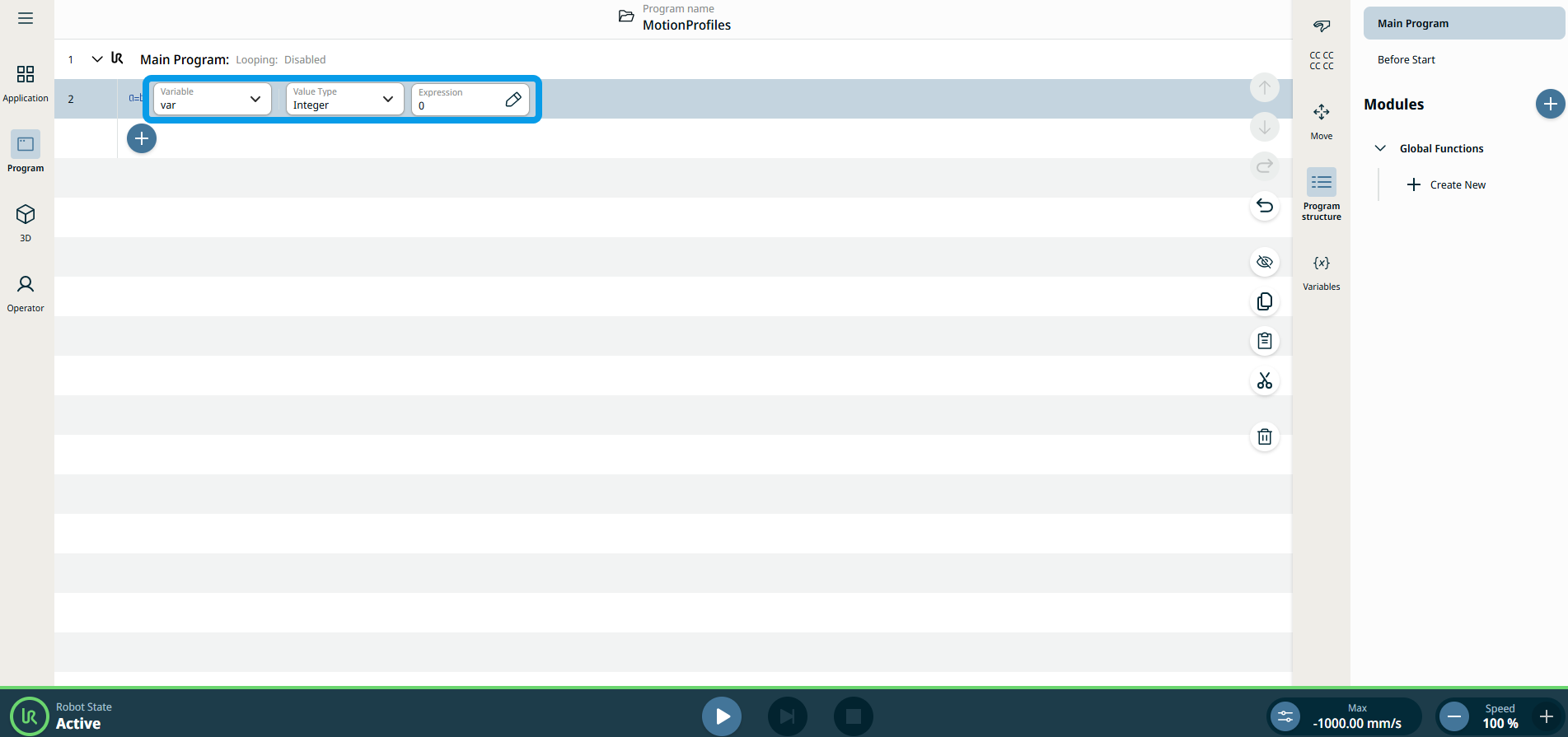

    A node with three editable fields is inserted into the program tree:

    • Variabel

    • Värdetyp

    • Uttryck

  1. Tap the Variable field to choose your variable:

    • rutnät

    • grid_iterator

    • var.

    The Variable field contains the name of the variable. By default, the variable is called var.


  1. Tap the Value Type field to and select your choice:

    • Matris

    • Boolesk

    • Float

    • Rutnät

    • Heltal

    • Matris

    • Placera

    • String

    • Timer

    • Vägpunkt

    The Value Type contains the type of variable you are creating.

    Typ Allowed Values/Examples Examples
    Matris A list of values
    Boolesk True/False Sant
    Float A decimal point value 1.23
    Rutnät A grid defined in the application
    Heltal Ett heltal 5
    Matris
    Placera A pose for the robot to move p[0,0,0,0,0,0,]
    String Text “Hello World”
    Vägpunkt A waypoint is defined in the program






  1. Tap the Expression field, select your variables and expression, and Confirm. The Expression is the value to assign the variable. See Uttrycksredigeraren.

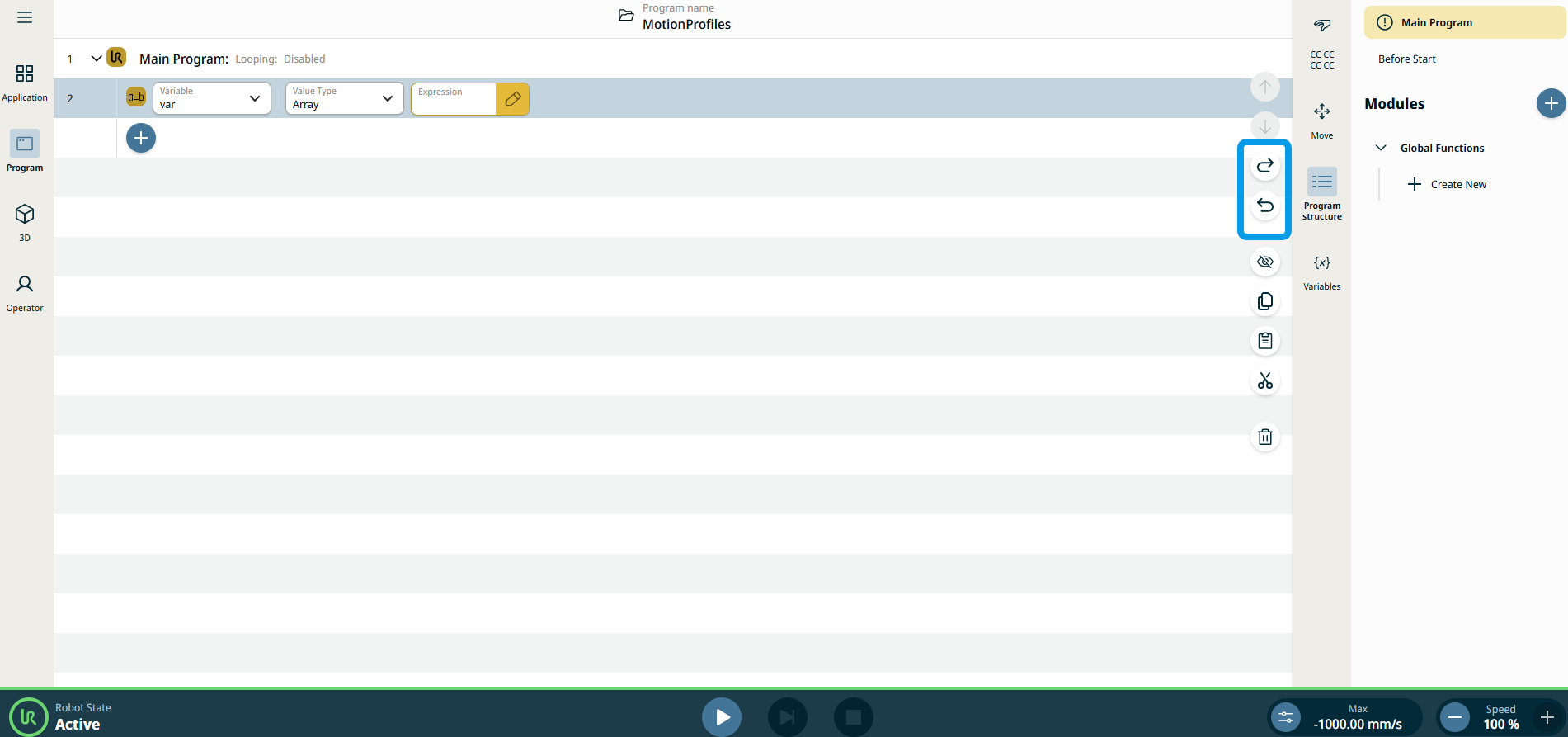

    Note: Tap the icon arrow left and arrow right in the right sidebar of the main screen if you want the assignment to be reverted.
