Priradenie

Popis

The Assignment command enables you to assign values to created variables.

To access Assignment command

  1. Go to the main program screen. Pozrite si Command Nodes.

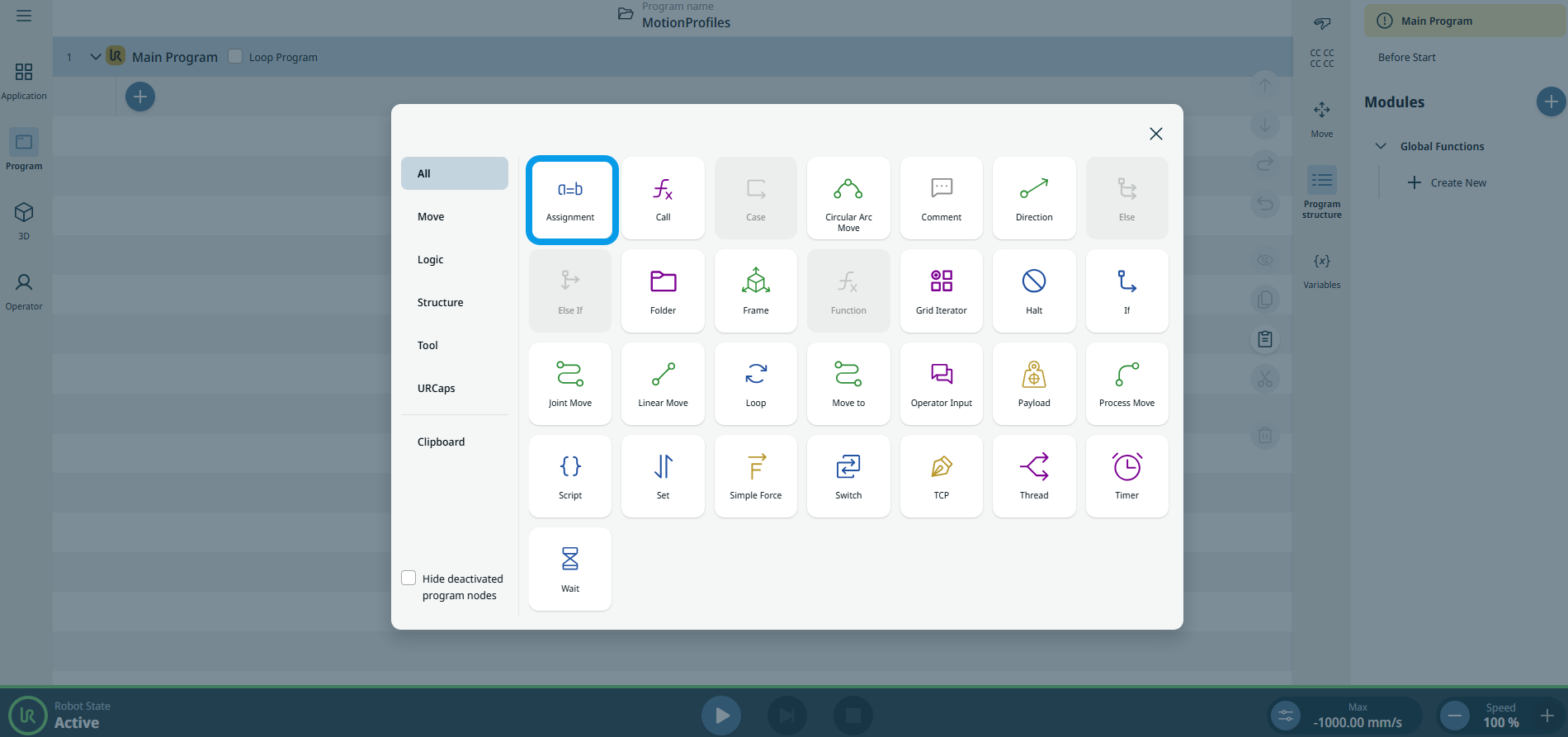

  2. Tap the Assignment icon in the Commands toolbox.

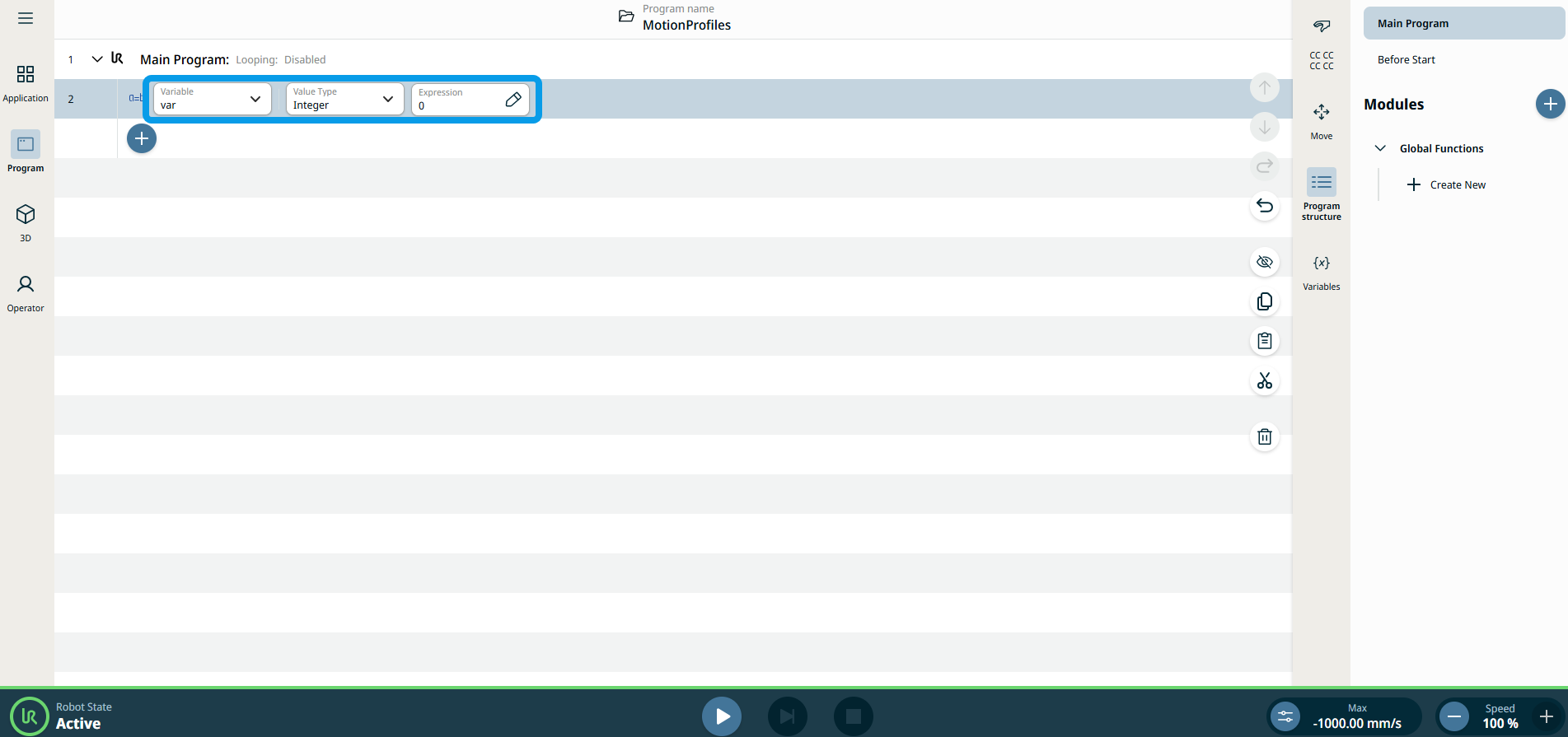

    A node with three editable fields is inserted into the program tree:

    • Premenná

    • Typ hodnoty

    • Výraz

  1. Tap the Variable field to choose your variable:

    • mriežka

    • grid_iterator

    • var

    The Variable field contains the name of the variable. By default, the variable is called var.


  1. Tap the Value Type field to and select your choice:

    • Pole

    • Booleovský

    • Plávajúce

    • Mriežka

    • Celé číslo

    • Matica

    • Pozícia

    • Reťazec

    • Časovač

    • Traťový bod

    The Value Type contains the type of variable you are creating.

    Typ Allowed Values/Examples Examples
    Pole A list of values
    Booleovský True/False Pravda
    Plávajúce A decimal point value 1.23
    Mriežka A grid defined in the application
    Celé číslo Celé číslo 5
    Matica
    Pozícia A pose for the robot to move p[0,0,0,0,0,0,]
    Reťazec Text “Hello World”
    Traťový bod A waypoint is defined in the program






  1. Tap the Expression field, select your variables and expression, and Confirm. The Expression is the value to assign the variable. See Editor výrazov.

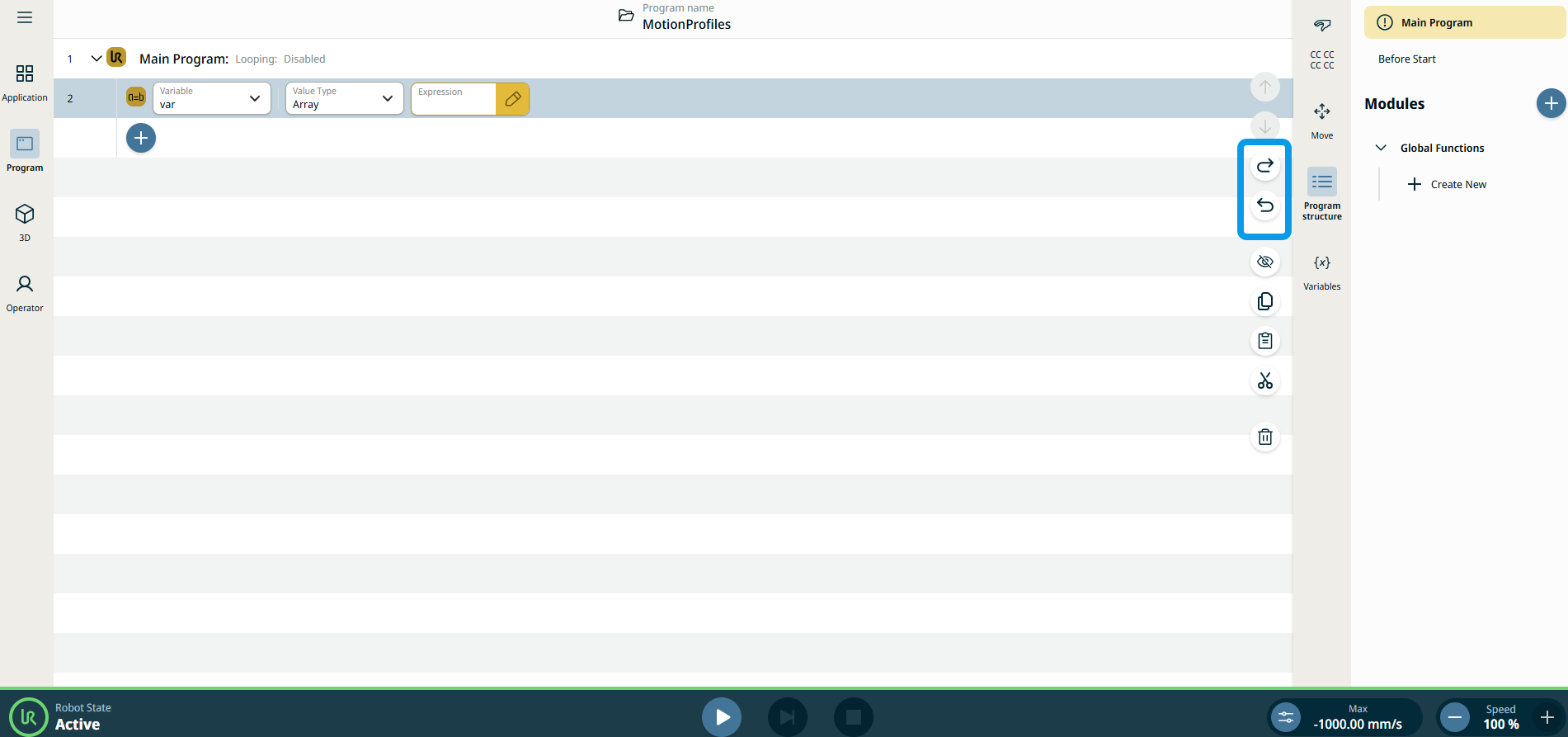

    Note: Tap the icon arrow left and arrow right in the right sidebar of the main screen if you want the assignment to be reverted.
