Asignación

Descripción

The Assignment command enables you to assign values to created variables.

To access Assignment command

  1. Go to the main program screen. Consulte Command Nodes.

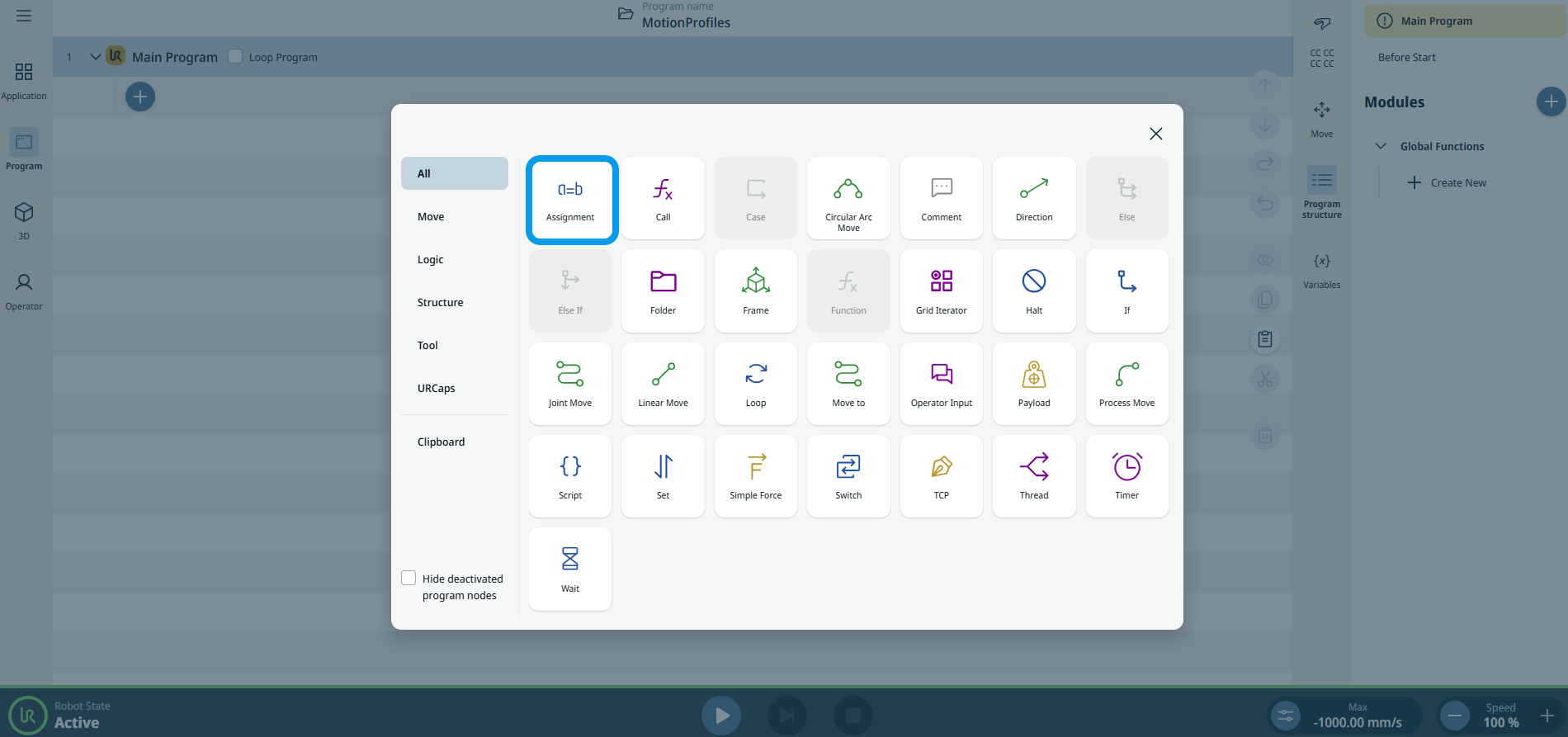

  2. Tap the Assignment icon in the Commands toolbox.

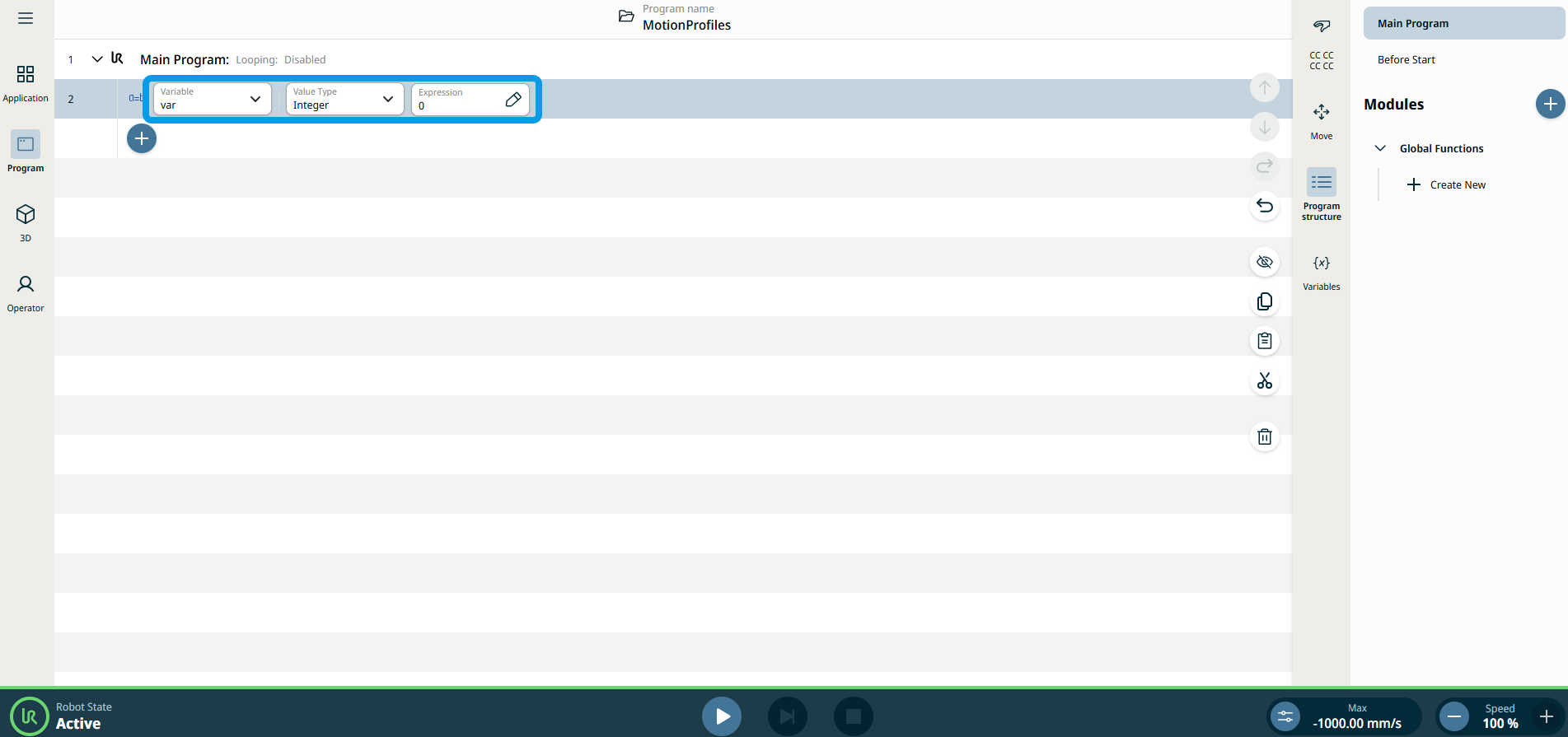

    A node with three editable fields is inserted into the program tree:

    • Variable

    • Tipo de valor

    • Expresión

  1. Tap the Variable field to choose your variable:

    • cuadrícula

    • grid_iterator

    • var

    The Variable field contains the name of the variable. By default, the variable is called var.


  1. Tap the Value Type field to and select your choice:

    • Arreglo

    • Booleano

    • Flotante

    • Cuadrícula

    • Entero

    • Matriz

    • Pose

    • Cadena

    • Temporizador

    • Punto de paso

    The Value Type contains the type of variable you are creating.

    Tipo Allowed Values/Examples Examples
    Arreglo A list of values
    Booleano True/False Verdadero
    Flotante A decimal point value 1.23
    Cuadrícula A grid defined in the application
    Entero Un número entero 5
    Matriz
    Pose A pose for the robot to move p[0,0,0,0,0,0,]
    Cadena Texto “Hello World”
    Punto de paso A waypoint is defined in the program






  1. Tap the Expression field, select your variables and expression, and Confirm. The Expression is the value to assign the variable. See Editor de expresión.

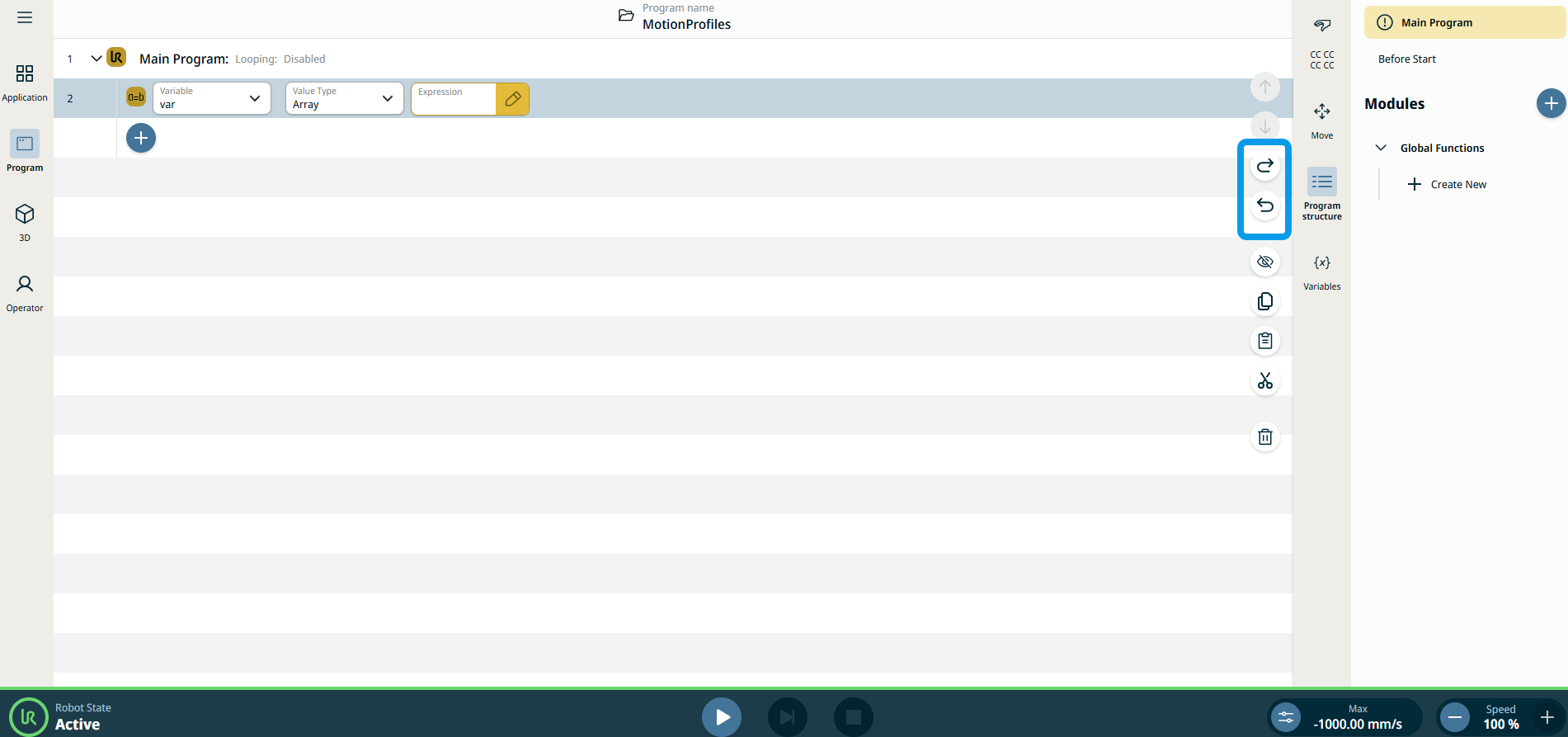

    Note: Tap the icon arrow left and arrow right in the right sidebar of the main screen if you want the assignment to be reverted.
