Recommended Tools

Figure 4.0. Robot arm and control box components



Robot Arm

Control Box

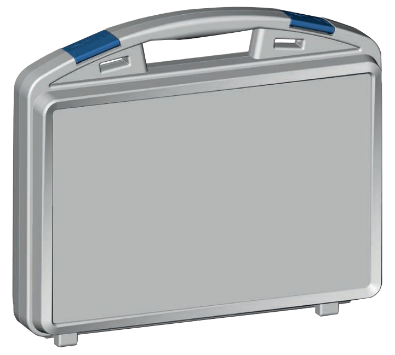

Service tools – part no.: 200119

Service tools – part no.: 200119

Spirit level
or

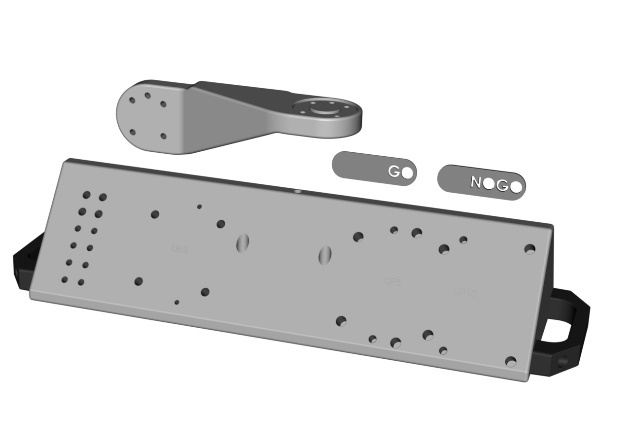

Dual Robot Calibration tooling
part no.: 185500

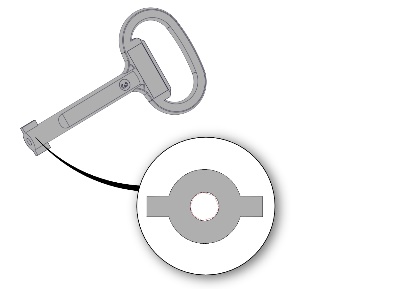

Cabinet key
(double-bit key)

SD card reader
