Control Box

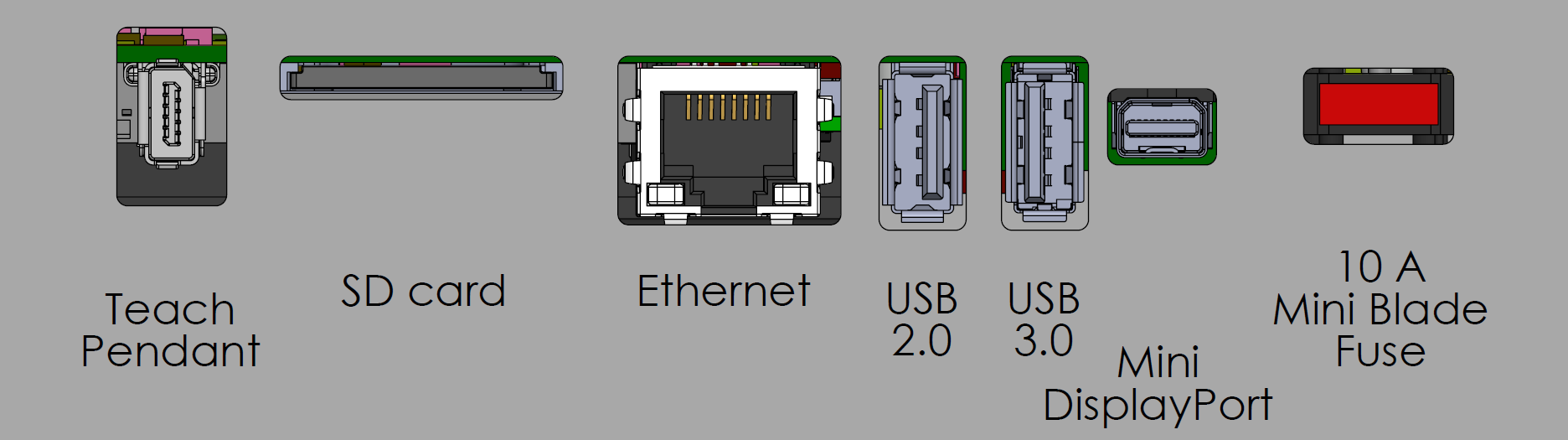

The Control Box houses the connection ports and Controller Inputs and Outputs (I/O) used in robot arm programs and installations. The connection ports are used for external connections. The I/O are groups of electrical interfaces used for communication and configuration.

For detailed descriptions of the Control Box connection ports and the Controller I/O, see the Installation.
