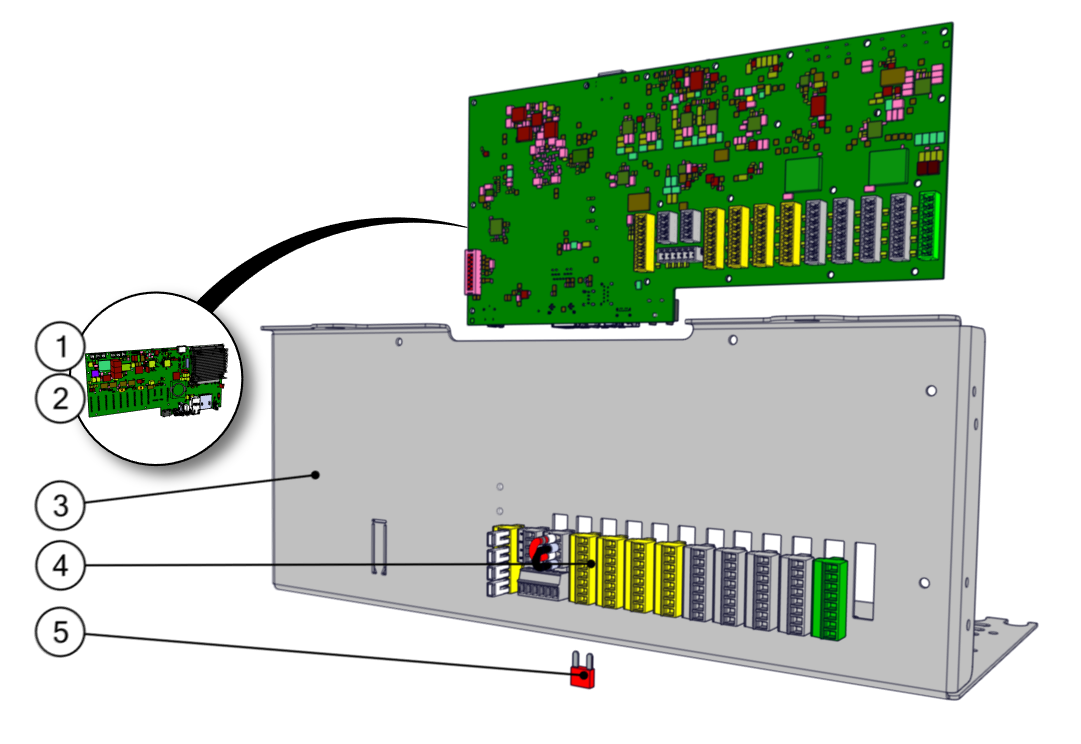

Safety Control Board Assembly for UR3e/ UR5e/ UR10e/ UR16e – 124511
|
Safety Control Board Assembly for UR3e/ UR5e/ UR10e/ UR16e – 124511 |
||||
|
NO. |
QTY. |
DESCRIPTION |
PART NUMBER(S) |
PAGE NO. |
|
1 |
1 |
Safety Control Board PCB |
N/A |
N/A |
|
2 |
1 |
Battery for Safety Control Board PCB - CR2450 |
170009 |
|
|
3 |
1 |
Safety Control Board Bracket |
N/A |
N/A |
|
4 |
1 |
Safety Control Board Terminal set for IOs |
104007 |
|
|
5 |
1 |
Fuse Mini Blade 10A |
170008 |
|
