Disassembly Clamp Connection

Description

These are the steps that you need to take to disassemble a clamp connection.




  1. Remove the screws in the blue lid, then remove the blue lid.
  2. Gently remove the power and communications wires from the terminals.

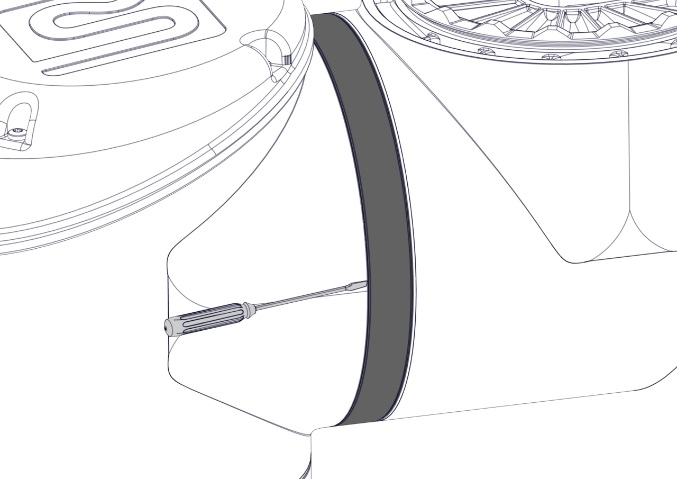

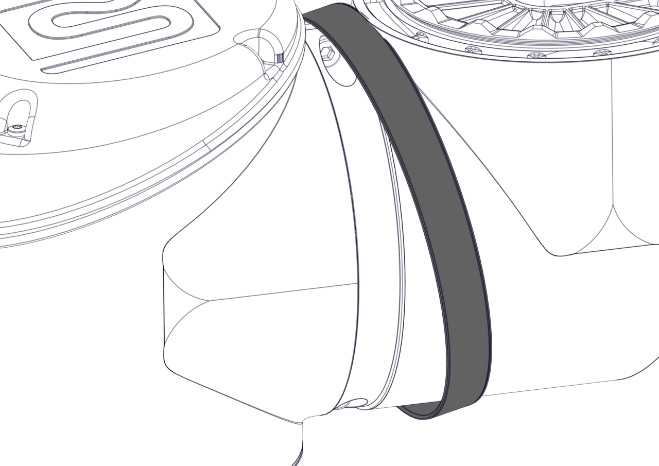

  3. Remove the black flat-ring. You can use a small flathead screwdriver.

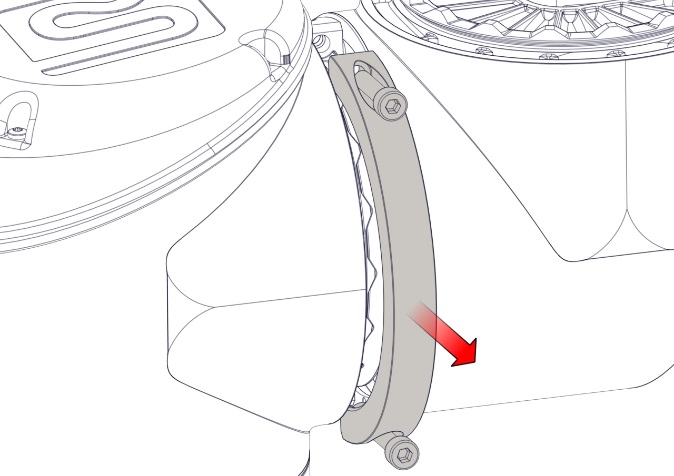

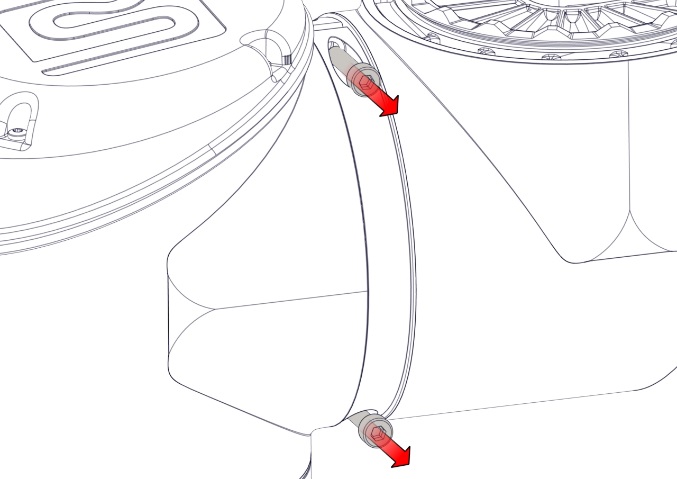

  1. Remove the screws and the clamp on one side.
The joint can fall off if not supported when removing the clamp.

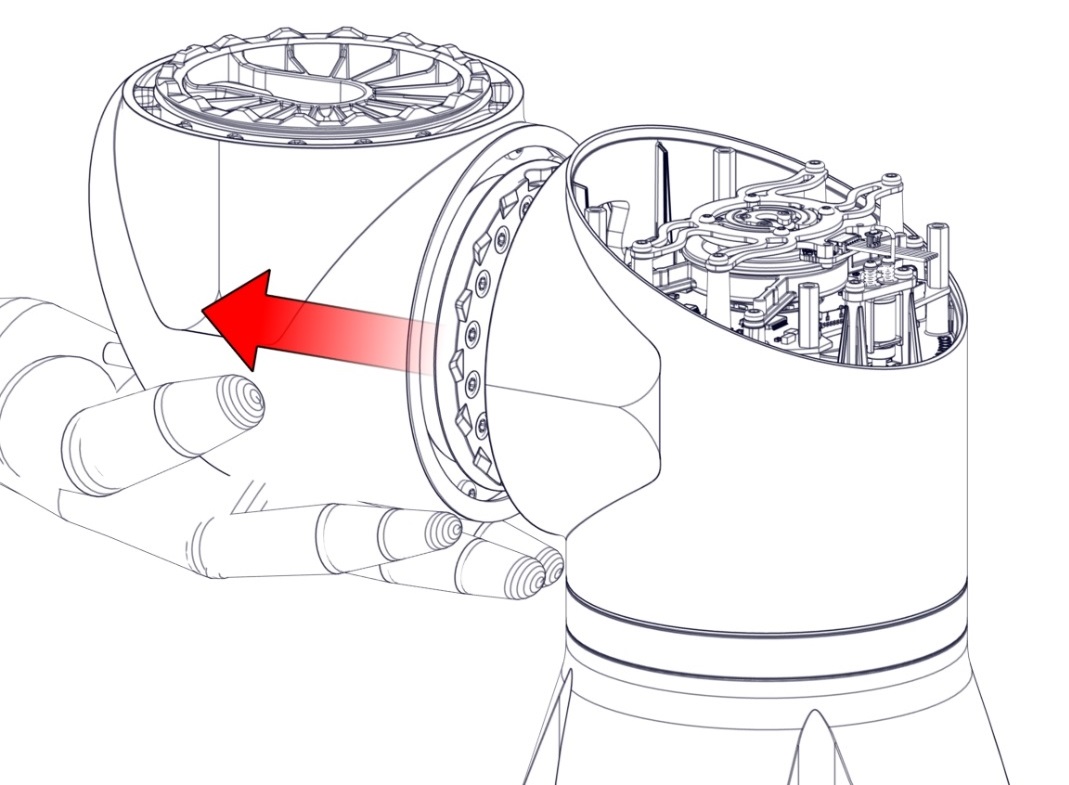

  1. Support the joint as you remove the second side of the clamp.



  1. The joint is now loose and can be removed. Remember to pull the wires out as well.
