Control Box

asdfs

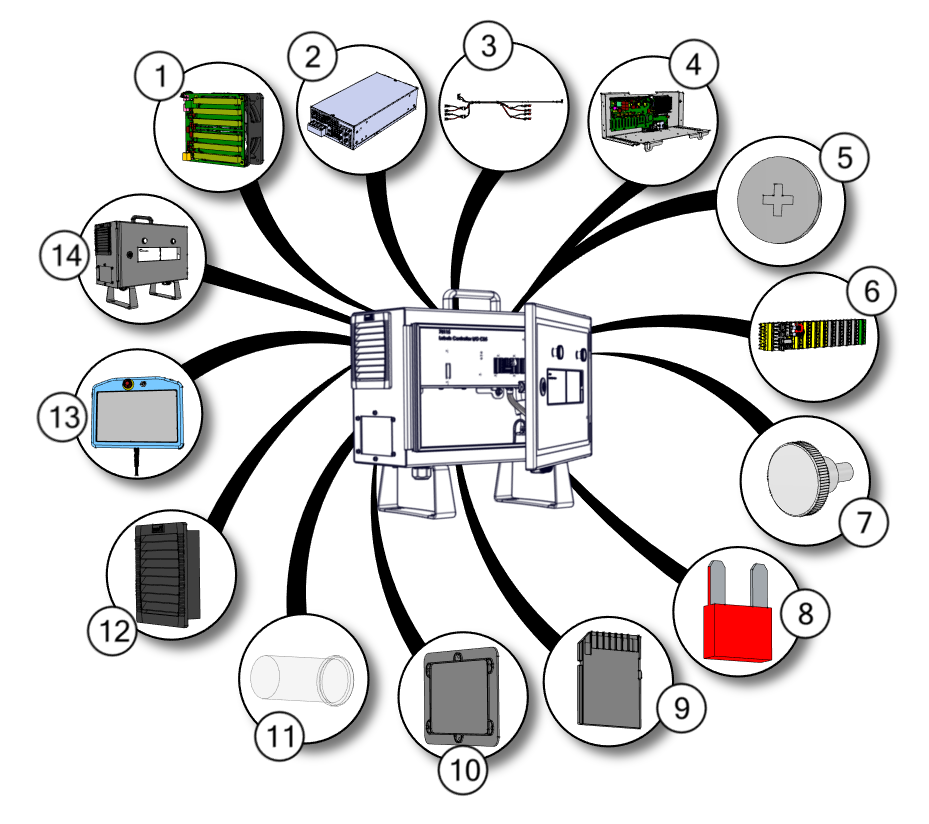

Click on the page no. in the right column to see part in detail or go to the page.

NO.	DESCRIPTION	PART NUMBER(S)	PAGE NO.
1	Fan & Energy Eater	122750	Filter-Fan-Energy Eater assembly for CB 5.1 – 122750
2	Power Supply	177525/177526/177005	Power Supply Unit for UR3e – 177525
3	Wire bundle Power Supply Unit	164071/164072	Wire bundle from Power Supply to Safety Control Board UR3e – 164071
4	Control Board	124511	Safety Control Board Assembly for UR3e/ UR5e/ UR10e/ UR16e – 124511
5	Battery for Control Board	170009	Battery CR2450 for Safety Control Board Assembly - 170009
6	Terminals for Control Board	104007	Terminal set for IOs in Safety Control Board – 104007
7	Teach Pendant and Control Box mounting bolt	105202	Teach Pendant and Control Box mounting bolts – 105202
8	Fuse for Control Board	170008	Fuse for IOs in Control Board – 170008
9	SD Card for Control Board	170010/170013	SCD card for Control Board – 170011/170013/170014
10	Cover plate with seal for Control Box	103240	Cover plate with seal – 103240
11	ight Pipe for Control Box	170007	Light pipes for control box - 170007
13	Teach Pendant	124091	Standard Teach Pendant - 124091
14	Control Box	124500/124510	Control Box 5.2 – 102403 (UR3e) /102400 (UR5e, UR10e, UR16e)
