Connecting the USB-to-Ethernet adapter

Criteria for success

  • The USB-to-Ethernet adapter is connected to the LAN cable and the Control Box USB port.

Before you connect the USB-to-Ethernet adapter

  • Locate the USB port in your Control Box before inserting the USB-to-Ethernet adapter.

  • Use a USB hub if the Control Box USB panel port is occupied.

To connect the USB-Ethernet adapter

  1. Connect the LAN cable to the Ethernet port in the USB-to-Ethernet adapter.

  2. Connect the USB-to-Ethernet adapter to the USB port in the Control Box.

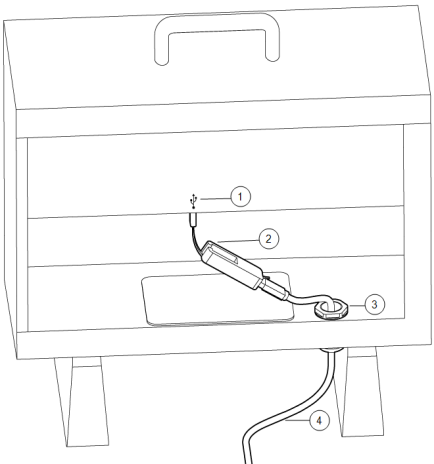

    3. 1 USB port 2 USB-to-Ethernet adapter
    3 Locknut 4 LAN Cable

    Figure 80.6:  USB-to-Ethernet adapter connected to LAN cable locked into cable gland.

In the next section you are going to pair and install the URCap.
